SAP CCO Peak Mobile GuideHow to use SAP Customer Checkout on Android

Setup

1. Download the Peak Mobile App on your local device

The download link is displayed below. If you have not yet received a password, please contact your Checkout Peak consultant or reach out to info@checkout-peak.com

Download: CCO-Peak APK

Install the APK on your local Android device.

2. Prepare your existing SAP CCO Instance
On your PC start SAP Customer Checkout like you normally would.

• • Backup Path:
    Go to Configuration -> Technical -> POS System Settings.
    Remove the current path for Backup Folder and replace it with a valid path which is accessible from your android device, for example:


    /storage/emulated/0/SAPCCO/Backup

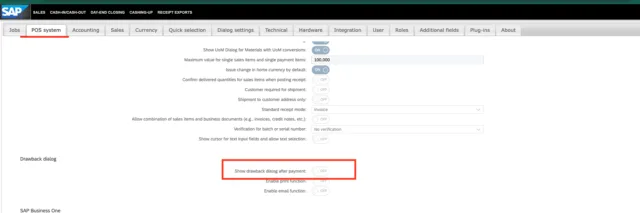

  • Deactivate Show cursor for input:
    Go to Configuration => Pos System => Sales Screen.

    Deactivate Show cursor for text input fields and allow text selection








  • Important: The PORT of your local POS should be 9999
    • To change the port go to Configuration => Technical => POS SYSTEM SETTINGS and configure the POS port under the Web section

3. Copy SAPCCO from Windows to Android

Shutdown SAP Customer Checkout. Locate your current  SAP Customer Checkout Directory on Windows. Rename the directory to „SAPCCO„.

Connect your Android device via USB and navigate to Internal storage. Copy the „SAPCCO“ folder to that directory.

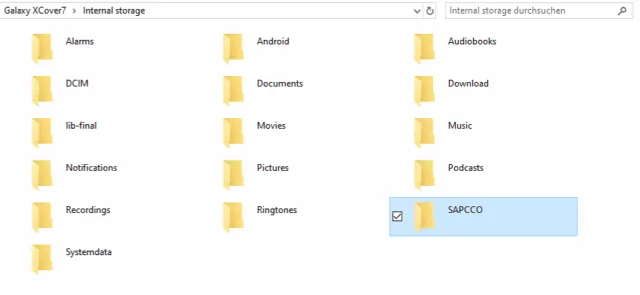

Result should look like this:

Note: In the latest version of Peak Mobile, you can alternatively use the built-in download manager. It automatically handles downloading, extracting, and moving the directory for you.

For example, you can upload the SAP CCO folder to Microsoft SharePoint and then retrieve it directly in Peak Mobile by entering the URL or scanning a QR code

4. Add License Key

Open the SAPCCO folder on your Android device and add the license.txt file that was provided by our team. Important: Without a license key the application will only be running for 30 days.

Now you can disconnect your android device from the PC.

5. Start Peak Mobile

Start the Peak Mobile App on your android device and follow the installation instructions on the screen. Make sure to allow all requested permission when prompted.

During the installation, you will see how SAP CCO starting in the terminal. This terminal window appears only once. If the startup runs without any issues, you can click on “Installation completed” at the top. After about 1–2 minutes, you will be automatically redirected to the SAP CCO start page.

Installation is completed!

Best Practice

How to Shut Down Your POS?

Important: Always use the designated shutdown option to prevent database corruption.
Android may terminate the application when it is not actively in use, which can result in data inconsistencies or database damage. Therefore, it is essential to follow the shutdown procedure described below.

1. Finish the checkout process and logout

2. Shut down the application using the Shutdown button

Always exit the application properly by clicking the “Shutdown” button located in the top-right corner of the POS application.

3. Wait for the database shutdown

During this process, the database is shut down in a controlled manner.

After the shutdown process is complete, a separate screen will appear, clearly indicating that the device can now be safely powered off.

Availability

Note: This Feature is only available after version 2026.19
